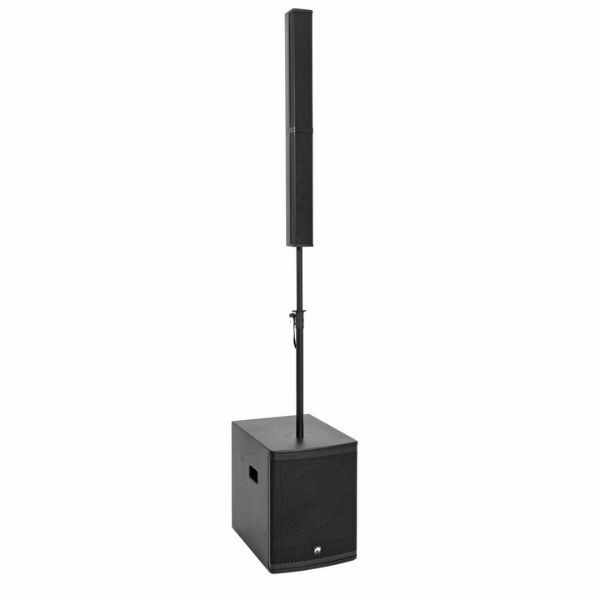

Omnitronic ROD-1283 Active Column Speaker System with DSP / Mixer & Bluetooth Link 800W RMS
Output power: 800 W RMS System
Frequency range: 40 - 20000 Hz System
Max. SPL: 128 dB system
DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction;
Delay Compensation; 3-band EQ
Weight: 25.90 kg
Subwoofer
Frequency range: 40 - 150 Hz
Attachment system: M20 thread
Speaker: 1 x woofer 12" with ferrit magnet
Steel Basket material
Voice coil lows 2.5"
Conematerial: cardboard/paper
Type of speaker: Subwoofer
Type of construction: Vented
Recessed carrying handle: 2 pc/pc
Transport aid: 4 x plastic feet
MDF (medium density fiberboard) Material
Power consumption: Max. 400 W
Output power: 1 x 500 W RMS LF
2 x 150 W RMS (8 ohms) HF
1 x 300 W RMS (4 ohms) HF
Digital Signal Processor
DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
Cooling: 1 x low-noise cooling fan
Filter: Low cut: 80 Hz
Bluetooth: Version: 5.3 with stereo link (TWS)
Bluetooth device name: ROD-1283
Bluetooth Range up to 10m in buildings
Carrier frequency: 2.4 GHz
Circuitry: Class D
Multi Colour LCD display
Overheat; short-circuit; DC voltage; Limiter
Input: mic/line via 1x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 2x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1x stereo RCA
Output: line via 1x 3-pin XLR (M) mounting version
Output: top via 2x speaker built-in socket (F)
Crossover frequency: 150 Hz
Dimensions (WxDxH): 37 x 52 x 48 cm
Weight: 22.5 kg
Column Speaker
Power: 160W
80W AES
Frequency range: 150 - 20000 Hz
Sensitivity: 90 dB (1W/1m)
Dispersion angle: 100° x 20°
Impedance: 8 ohms Top
Flange: Ø 25mm
Input: top via 1 x speaker built-in socket (F)
4 x full range loudspeaker 3" with neodymium magnet
Basket material: Steel
Voice coil full range loudspeaker 0.75"
Plastic hard Material
Dimensions (WxDxH): 8.5 x 10.5 x 45 cm
Weight: 1.50 kg
