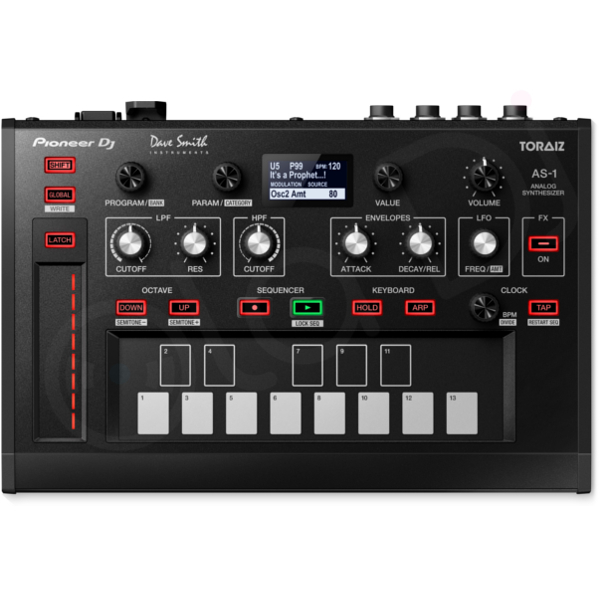

Pioneer Toraiz AS-1 Monophonic Analog Synthesizer

Analog synthesis

99 programmes x 10 banks 5 factory banks and 5 user banks
Each program includes its own sequence pattern
Up to 13 favourite programmes can savedt

Synthesis Parameters
Oscillator 1
Frequency
Pulse Width
Sync (Off, On)

Oscillator 1 Waveshapes (continuously variable)
Triangle
Sawtooth
Variable-width Pulse

Oscillator 2
Frequency
Fine
Pulse Width
Key Follow (Off, On)
Low Frequency (Off, On)

Oscillator 2 Waveshapes (continuously variable)
Triangle
Sawtooth
Variable-width Pulse

Oscillators
Slop

Mixer
Oscillator 1 Level
Oscillator 2 Level
Sub Level
Noise Level

Low-pass Filter
Cutoff
Resonance
Key Amount (Off, Half, Full)
Velocity (Off, On)

High-pass Filter
Cutoff
Resonance
Key Amount (Off, Half, Full)
Velocity (Off, On)

Filter Envelope
Low-pass Filter Amount
High-pass Filter Amount
Attack
Decay
Sustain
Release

AMP Envelope
Amount
Velocity (Off, On)
Attack
Decay
Sustain
Release

Glide
Rate
Off, On
Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A)

LFO
Frequency
Sync (Off, On)
Initial Amount

LFO Shapes
Triangle
Reverse Sawtooth
Sawtooth
Square
Random

LFO Destination
Oscillator 1 Frequency
Oscillator 2 Frequency
Oscillator 1 and 2 Pulse Width
Low-pass Filter Cutoff
High-pass Filter Cutoff
VCA

Modulation Source
Filter Envelope
Oscillator 2 Amount

Modulation Destination
Oscillator 1 Frequency
Oscillator 1 Shape
Oscillator 1 Pulse Width
Low-pass Filter Cutoff
High-pass Filter Cutoff

Effects
FX 1 Types
Bucket-brigade Delay
Distortion
Ring Modulation

FX 2 Types
Chorus
Low Resonance Phaser
High Resonance Phaser
Maestro Phaser

Parameters
Each effect has 2 adjustable parameters

Sequencer
Step Length
Up to 64 steps

Parameters
Key, Velocity, Slew (Off, On) for each step
BPM (shared with arpeggiator)
Time Divide (shared with arpeggiator)

Arpeggiator
Mode
Up
Down
Up + Down
Random
Assign

Range
1 ~ 3 octaves

Parameters
BPM (shared with sequencer)
Time Divide (shared with sequencer)

Performance Controls
Keyboard
13-key touch keyboard
22 preset scales
9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters)

Slider Parameters (multi assignable)
Oscillator 1 Frequency
Oscillator 2 Frequency
Low-pass Filter Amount
High-pass Filter Amount
LFO Amount
FX 1 Mix
FX 2 Mix

OLED Display
Able to access all parameters

MIDI Controllable Parameters

Aftertouch
Amount
Aftertouch Destination
Oscillator 1 Frequency
Oscillator 2 Frequency
Low-pass Filter Cutoff
High-pass Filter Cutoff
VCA
LFO Amount

Pitch Bend Range
Up to -/+ 12 semitones

Miscellaneous
Key Mode
Low
High
Last
Low Retrigger
High Retrigger
Last Retrigger

Alternative Tuning
17 preset tunings

Outputs
1 AUDIO OUT L/R (1/4 inch TS Jacks)
1 PHONES (1/4 inch stereo phone Jack)

MIDI
1 MIDI IN (5P DIN)
1 MIDI OUT/THRU (5P DIN)

USB
1 USB B port

Trigger Input
1 TRIGGER IN (1/4 inch TS jack)
Able to connect a general foot switch or input audio signals
Able to set the operation from 4 types:
Pedal
Trigger
Gate
Trigger-Gate

Included Accessories
AC adaptor
Power Supply DC 5 V
Power cord
Quick Start Guide

Dimensions Width 267.4 mm x Depth 177.7 mm x Height 68.6 mm
Weight 1.4 kg
